LV Controlgear

LV CONTROL-GEAR

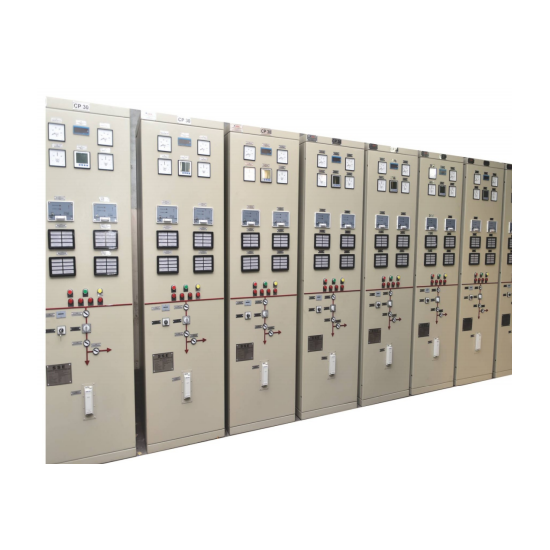

CONTROL PANEL CP-30

Control Panel Cp-30 equipped with Control Switches, Transducers & Supervision Relay for 132kV Line with mimic for Single Bus Bar.

CONTROL PANEL CP-50

Control Panel CP-50 equipped with Control Switches, Transducers & Supervision Relay for 132 / 11kV Power Transformer.

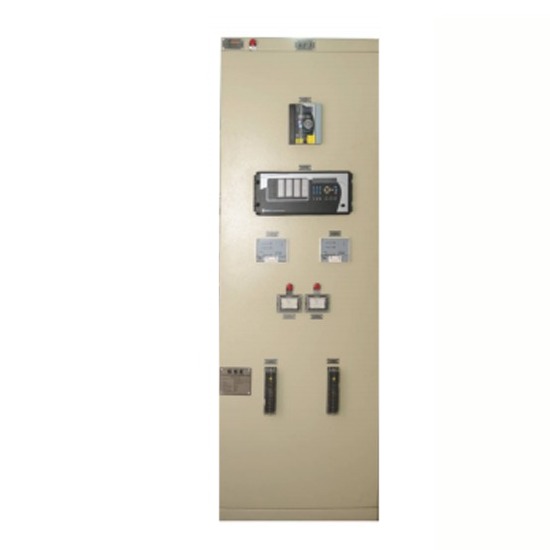

RELAY PANEL RP-3

Relay Panel RP-3 equipped with various protection relays for the supervision of 132kV line.

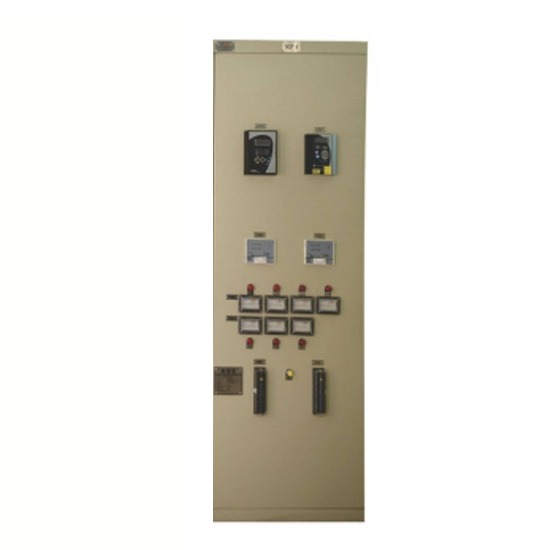

RELAY PANEL RP-4

Relay Panel RP-4 equipped with various protection relays for the supervision 132kV / 11kV Power Transformer.

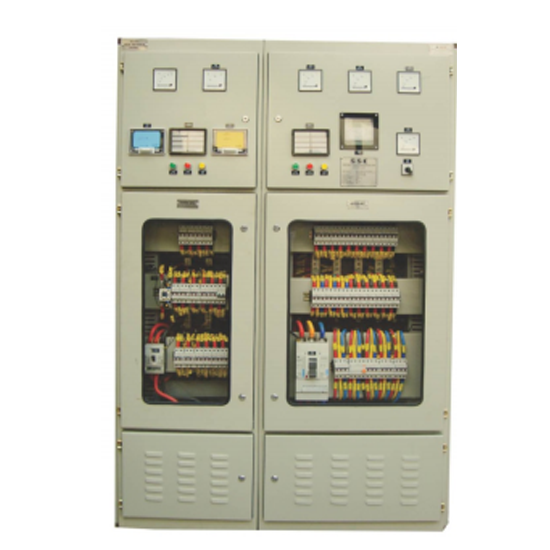

AC / DC AUXILIARY SERVICE PANEL

The AC / DC Auxiliary Services Panel equipped with Circuit Breakers for incoming and outgoing circuits, protective devices and auxiliary equipment to be used with Pad Mounted Transformer.
